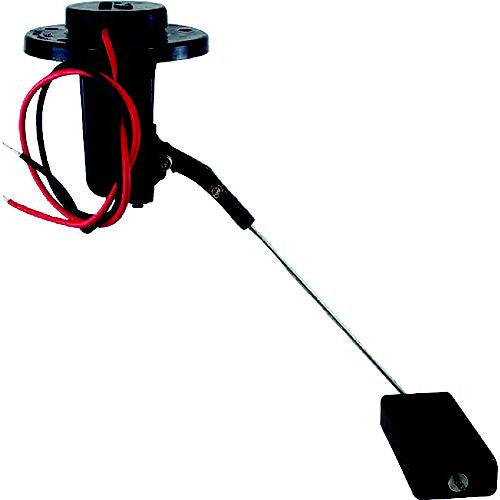

035791-10 Moeller Reed Array Sending Unit for Tank Depth 6-24"

Section: F-4

035791-10 Moeller Reed Array Sending Unit for Tank Depth 6-24"

Manufacturer: Moeller

Part Number: 035791-10

Condition: New

Quantity: 1

Cross References: : 035791-10, 17654601, 28-6667, 1765-4601, MOE 03579110, 28-6666

These molded, UV stabilized thermoplastic senders feature corrosion protection, a standard 5-hole SAE mounting bolt pattern and a sealed electrical circuit for protection from fuel, water and other contaminants. Dependable, long-lasting reed switch and magnet technology is suitable for gasoline, ethanol, bio-diesel and non-potable water. Operates in temp ranges from 40°F - 176°F and meets requirements of ISO 10088, ABYC H-24, 33CFR 183.590 and ISO 8846. Three year limited warranty.

Dash-mounted gauge sold separately

Designed for top-mounting in aluminum, plastic or stainless steel fuel tanks

Material provides superior corrosion protection, both inside and outside the tank

Black wire is ground

Pre-bent 90° float arm

Fits 6" to 24" tank depths (152-610mm)

Calibration to 33-240 ohms

*(May not fit all years or models and it may fit other motors)

*Please verify fitment using your model or serial number*
