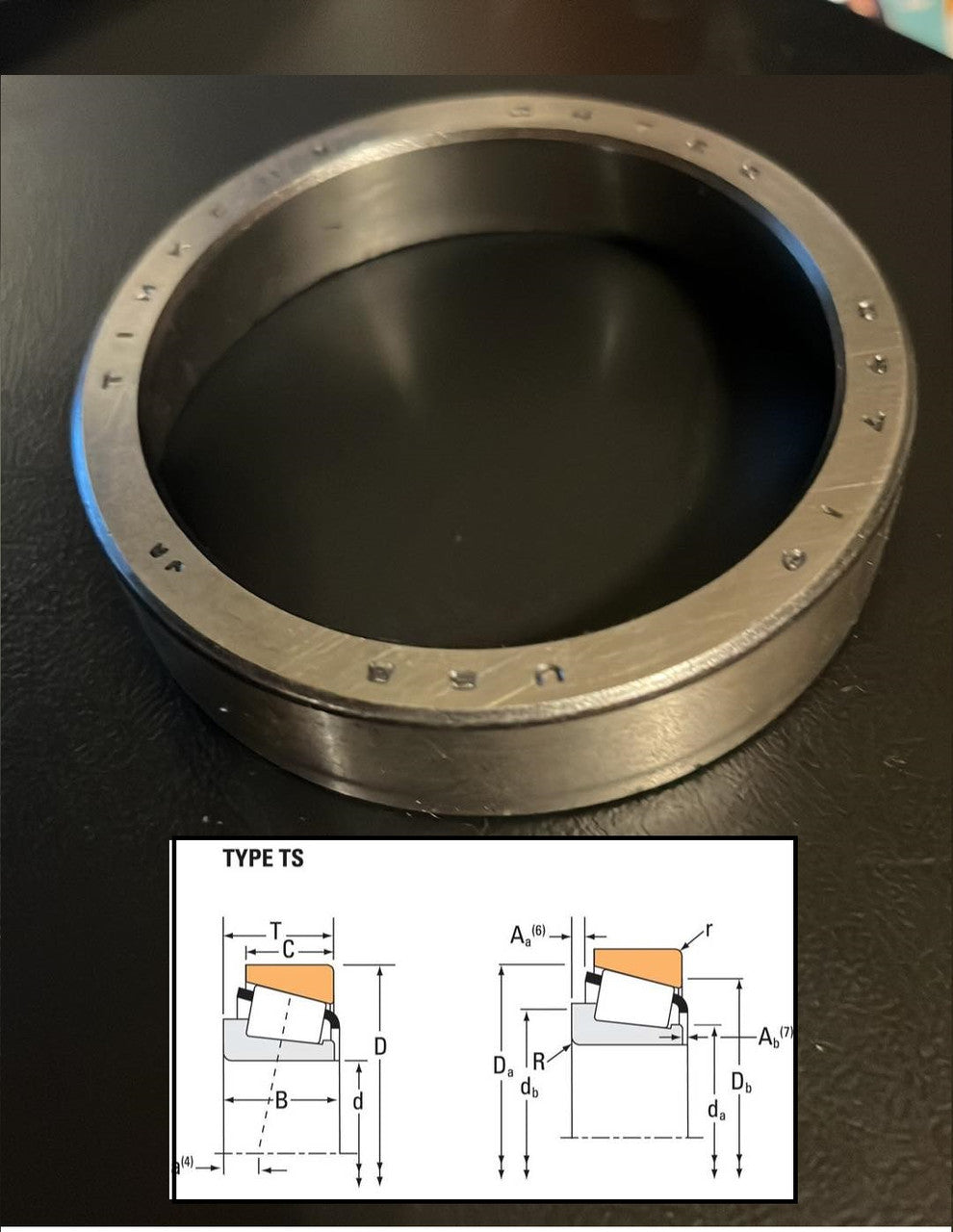

USED 24720 Timken Tapered Roller Bearings Single Cup / Race Only

Section: D-17

USED 24720 Timken Tapered Roller Bearings Single Cup / Race Only

Manufacturer: Timken

Part Number: 24720

Condition: Used

Quantity: 1

Specifications

From Series 24700

Cup Part Number 24720

Design Units Imperial

Dimensions

D - Cup Outer Diameter 3 in 76.2 mm

C - Cup Width 0.6875 in 17.463 mm

Abutment and Fillet Dimensions

r - Cup Backface "To Clear" Radius1 0.03 in 0.76 mm

Da - Cup Frontface Backing Diameter 2.87 in 71.90 mm

Db - Cup Backface Backing Diameter 2.68 in 68.07 mm

Factors

e - ISO Factor2 0.39

Y - ISO Factor3 1.53

Cg - Geometry Factor4 0.0767
