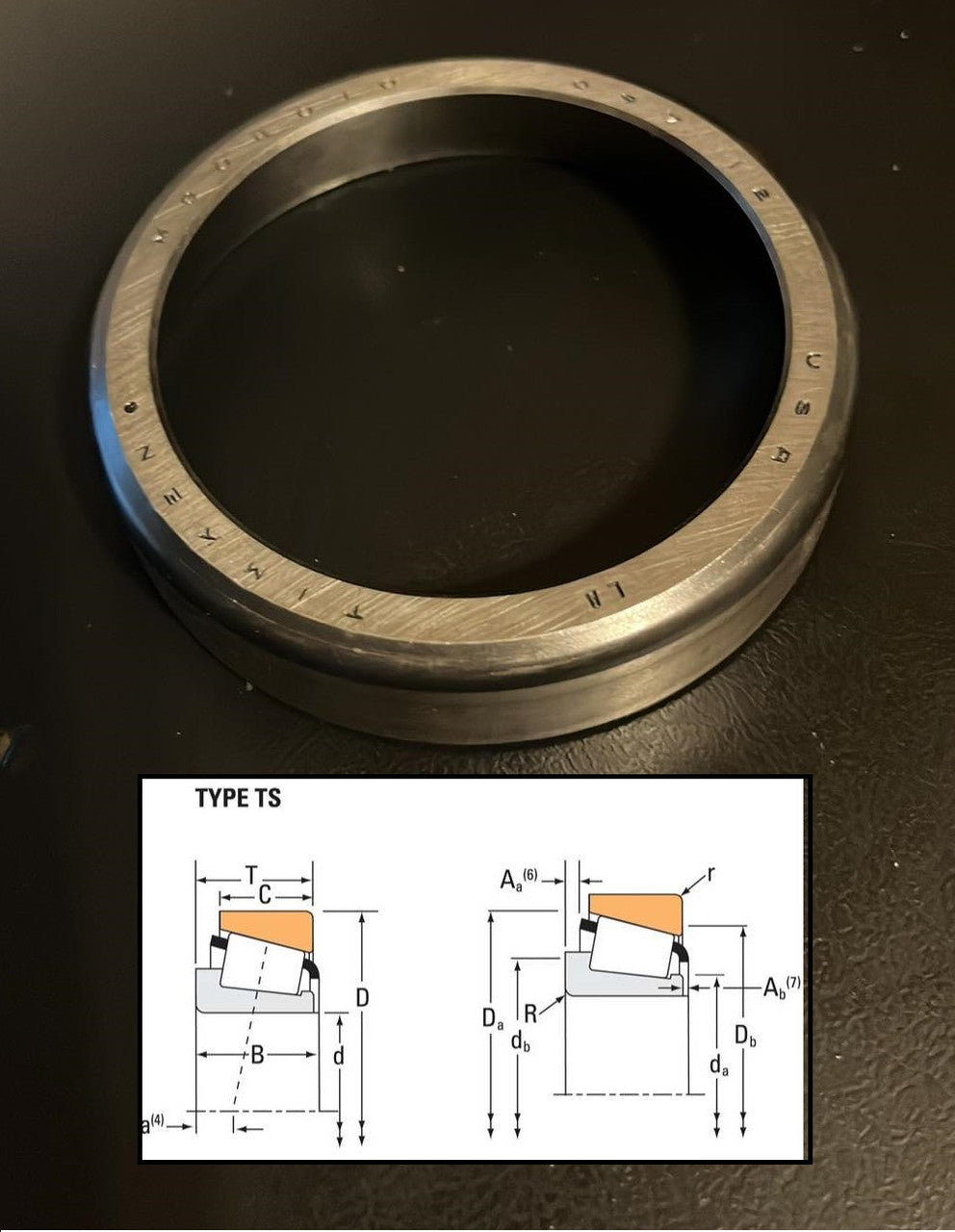

USED M804010 Timken Tapered Roller Bearing Cup / Race

Section: D-17

USED M804010 Timken Tapered Roller Bearing Cup / Race

Manufacturer: Timken

Part Number: M804010 / M-804010

Condition: Used

Quantity: 1

Specifications

From Series M804000

Cup Part Number M804010

Design Units Imperial

Dimensions

D - Cup Outer Diameter 3.5000 in 88.900 mm

C - Cup Width 0.75 in 19.05 mm

Abutment and Fillet Dimensions

r - Cup Backface "To Clear" Radius1 0.13 in 3.3 mm

Da - Cup Frontface Backing Diameter 3.39 in 85.10 mm

Db - Cup Backface Backing Diameter 3.03 in 76.96 mm

Factors

e - ISO Factor2 0.55

Y - ISO Factor3 1.1

Cg - Geometry Factor4 0.0924
