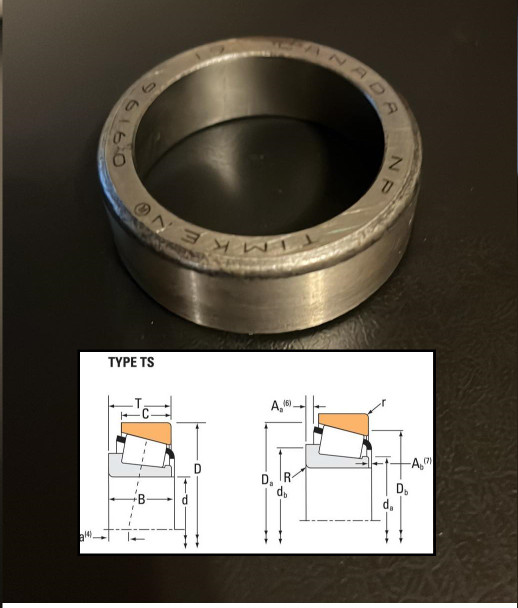

USED 09196 Timken Tapered Roller Bearing Single Cup / Race Only

Write a Review
SKU:
09196
MPN:
09196
MSRP: $10.00
$5.00
— You save $5.00

Description

Section: D-17

USED 09196 Timken Tapered Roller Bearing Single Cup / Race

Manufacturer: Timken

Part Number: 09196

Condition: Used

Quantity: 1

Specifications

From Series 09000

Cup Part Number 09196

Design Units Imperial

Dimensions

D - Cup Outer Diameter 1.938 in 49.225 mm

C - Cup Width 0.6875 in 17.463 mm

Abutment and Fillet Dimensions

r - Cup Backface "To Clear" Radius1 0.06 in 1.52 mm

Da - Cup Frontface Backing Diameter 1.79 in 44.50 mm

Db - Cup Backface Backing Diameter 1.63 in 41.40 mm

Factors

K - Factor2 2.2

e - ISO Factor3 0.27

Y - ISO Factor4 2.26

G1 - Heat Generation Factor (Roller-Raceway) 8

G2 - Heat Generation Factor (Rib-Roller End) 4

Cg - Geometry Factor5 0.0452
