5006 MOTOFLEX Battery Disconnect Switch 12V-48V Battery Cut Off Switch

Section: F-6

5006 MOTOFLEX Battery Disconnect Switch 12V-48V Battery Cut Off Switch

Manufacturer: MOTOFLEX

Part Number: 5006

Condition: New

Quantity: 1

Specifications:

• Patent No.: US D1,076,828 S
• Type: ON/OFF (Removable Knob)
• Voltage: 48V DC MAX.
• Continuous Amps: 300A
• Intermittent Amps: 450A / 5 MIN.
• Crank Amps: 900A / 30 SEC.
• Terminal Material: Copper
• Terminal Size: 3/8" Diameter holes with SAE top post Clamp & Post (Negative)
• Ingress Protection: IP66 (Protected against dust and strong water jets)
• Material of Housing: PA66 (-40℉ to 284℉)
• Solid mechanical switch, Package includes 1x Install Guide, 1x Disconnect Switch, 1x SAE Female Battery Clamp (Negative), 1x SAE Male Terminal Post (Negative), 1x Adjustable Spacer. Please note this switch is to power off the whole system by the battery, electronics that store data like your radio, will lose memory every time you switch off
• Removable knob, Robust built to last - The knob is removable as an anti-theft feature or to prevent unauthorized action. Easy-to-turn large red knob. PA66 housing for safety use in the engine department (Temp rating -40℉ to 284℉)

• High current device, Waterproof - 300A continuous / 900A crank amps. 48V DC Max. IP66 waterproof. Heavy duty copper terminals for premium conductivity. This battery disconnect switch is used to shut off the power when your vehicle or boat sits for a while. Quick disconnect switch for car, truck, RV, marine, boat, and other equipment

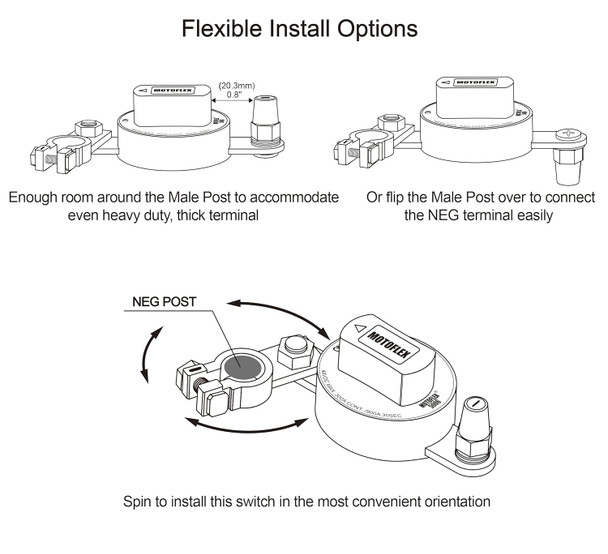

• Patented design, Compact size - The Height of this battery switch is only 1-1/2 inches. Designed for limited hood clearance install. It can be installed directly on top of most batteries. Flexible installation for tight space, refer to image 6. Please check clearance requirements before purchase
• SAE top post battery, Negative disconnect - This battery switch can be used for any 12V-48V systems that not in use, prevent battery from parasitic drain or as a theft deterrent. No need to manually disconnect the cable from battery every time

• This battery switch is designed to be installed on the NEGATIVE side of the battery. The switch itself is not polarity sensitive, terminals (the clamp & Post) provided are for SAE top post battery negative side install. Positive post of SAE battery is larger in diameter than the negative post
• For recessed top post battery, you can use an extension cable or could be adapted with a long bolt/spacer to raise the switch on top of the battery if needed
• For anti-theft, you could Install it with an extension cable to tuck it away and hide it anywhere of your choice
